Aluminum sprockets are manufactured for applications where saving weight is absolutely critical. Our aluminium sprockets are made in China using high-quality 6061-Grade aluminum alloy, also referred to as 61S alloy. This material is a precipitation-hardened light weight aluminum alloy which has magnesium and silicone as its major alloying elements. It is typically used to create roller chain sprockets because it has good mechanical properties and will be offering good weldability.
We can supply light weight aluminum roller chain sprockets in any chain size with any tooth, bore, and hub configuration (including idlers). Normal manufacturing time is 10-12 business days but expediting choices are for sale to rush circumstances. We are able to supply one-off parts or bulk quantities. To get a quote on an aluminium roller chain sprocket simply give us a call, or send a contact to [email protected], or if you already have the details on the sprocket you have to complete the request type below and we will contacting you.
Another weight-saving option will be using a plastic-type material roller chain sprocket, they are typically upon the shelf along with an comprehensive line of plastic roller chain, plastic-type bearings, and plastic-type material chain guide railing.
Aluminum Sprockets (0.250) 32T
Product Highlights
• 32 Teeth sprocket
• Works well with light weight aluminum hubs and gearmotors
• 0.100” thick and accept standard 0.25” (1/4”) metal or plastic chain
• Extremely strong and light-weight
• 1/2” Bore
Description
• 32 Teeth sprocket
• Works well with aluminium hubs and gearmotors
• 0.100” thick and accept standard 0.25” (1/4”) metal or plastic chain
• Extremely strong and light weight
• 1/2” Bore
The Aluminum Sprockets (0.250) 32T are Aluminum sprockets china really strong and light-weight. They are are .100” thick and accept regular .25” (1/4”) steel or plastic chain.
Aluminum Sprockets (0.250) 16T
Product Highlights
• 16 Teeth sprocket
• Works well with aluminum hubs and gearmotors
• 0.100” thick and accept standard 0.25” (1/4”) metal or plastic chain
• Extremely strong and light weight
• 1/2” Bore
Description
• 16 Teeth sprocket
• Works well with light weight aluminum hubs and gearmotors
• 0.100” thick and accept standard 0.25” (1/4”) metal or plastic chain
• Extremely strong and light-weight
• 1/2” Bore
The Aluminum Sprockets (0.250) 16T are really strong and light-weight. They are are .100” thick and accept regular .25” (1/4”) steel or plastic chain.
Specifications
• Bore: 1/2”
• P.D.: 1.282”
• O.D.: 1.407”
• Weight: .10 oz
S25-60L Aluminum Sprocket
Product Overview
25 Series, 60 tooth
Specifications
Bolt Circle: 1.875″ diameter,0.206″ diameter holes
Inside Diameter: 1.1245″
Material: 6061 aluminum
Number of Teeth: 60
Outside Diameter: 4.913
Pitch Diameter: 4.772
Series: #25
Thickness: 0.086-0.092 in.
Weight: 0.2 lb
S25-42L Aluminum Sprocket
Product Overview
25 Series, 42 tooth
Specifications
Bolt Circle: 1.875″ diameter,0.206″ diameter holes
Inside Diameter: 1.1245″
Material: 6061 aluminum
Number of Teeth: 42
Outside Diameter: 3.475
Pitch Diameter: 3.341
Series: #25
Thickness: 0.086-0.092 in.
Weight: 0.09 lb

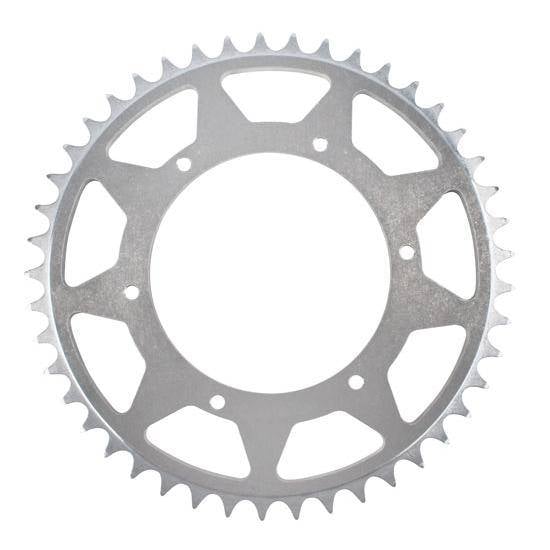

Ever-power ALUMINIUM REAR SPROCKET 44 TOOTH 520 PITCH
All Ever-power aluminium rear sprockets have already been precision CNC machined to an extremely limited tolerance. With a case hardened core they offer the ultimate mixture of minimal weight, optimum strength and hardness.
Their exclusive design also incorporates self-cleaning mud grooves between each tooth of the sprocket, helping to prevent a build-up of dirt and grime on your chain and sprockets, increasing their lifespan whilst reducing the effect on your wallet!
Precision CNC Machined
Case Hardened And Primary Refined
Ultimate MIX OF Strength And Hardness
Self-Cleaning Mud Grooves Between Each Tooth Prevent Dirt Build Up
OBTAINABLE IN Various Tooth Sizes
Available For AN ARRAY OF Applications
Production
The Ever-power Sprockets factory may be the largest & most advanced in the world. It really is fully built with high accuracy machinery, including the latest era of CNC computer style and computer controlled metal cutting equipment.
The essence of a superior quality sprocket is in the high precision of manufacturing and the inherent quality of the materials. Through accurate machining, Ever-power ensures maximum durability and performance.
Ever-power Sprockets are produced the right way – by hobbing, machining and drilling. This is actually the only proven method to attain the closest of tolerances and the most accurate teeth profiles.
Heat treated and hands finished to perfection, all Ever-power sprockets meet
or exceed optimum quality standards set for the motorcycle industry.
Quality Control
Every sprocket goes through up to 25 production stages and 10 individual quality control checks before it really is ready to keep the factory and the production facility has achieved the highest European quality standards.
